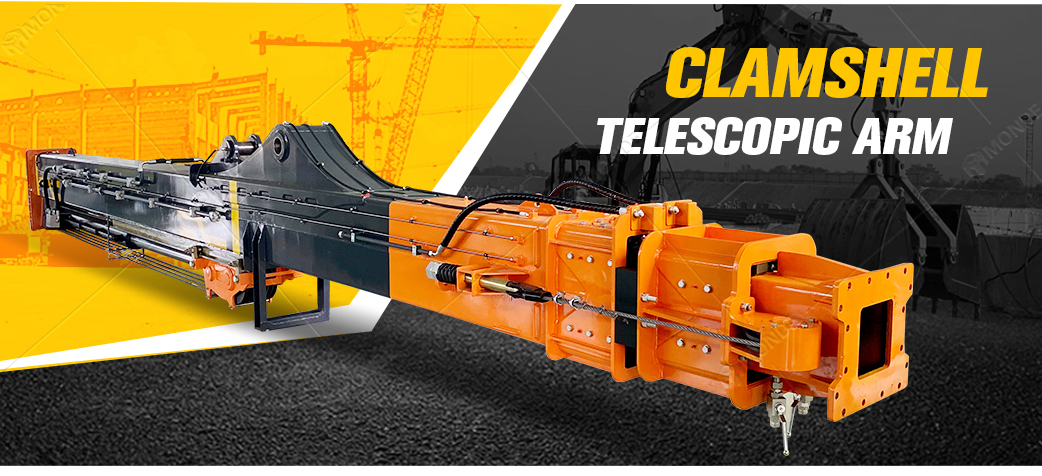

Clamshell Telescopic Boom
The Clamshell Telescopic Boom is engineered for confined and demanding worksite conditions, equipped with a robust telescopic arm and boom, and a heavy-duty clamshell bucket. Delivering exceptional reach, control and productivity the ability to perform in confined spaces such as urban foundations, tunneling and deep pit projects make it the ideal choice in simplifying complex tasks.
Advantages：
Deep Excavation Capability: Reaches depths up to 50 meters without the need for slope cutting
Precision Grab Control: Hydraulic clamshell bucket allows accurate soil removal
Compact Footprint: Ideal for congested urban job sites or limited-access basements
High Productivity: Rapid excavation cycles reduce overall construction time
Operator Safety: Remote operation keeps workers away from hazardous zones
|
Technical Specifications Clamshell Telescopic Arm |
|||||
|
Excavator size (t) |
≥15t |
≥23t |
≥36t |
≥47t |
55t |
|
A Max. vertical digging depth (mm) |
15200 |
22490 |
27 180 |
35000 |
35000 |
|
B Max. Digging Radius(Reach Max. Digging Depth) (mm) |
4670 |
5845 |
6400 |
6850 |
7050 |
|
C Max. vertical digging radius (mm) |
6430 |
7445 |
8530 |
8820 |
9080 |
|
D Digging depth (reach Max. Vertical digging radius)(mm) |
11825 |
19920 |
22370 |
27400 |
28300 |
|
E Max. working radius (mm) |
7950 |
9835 |
11250 |
12700 |
12100 |
|
F Max. unloading soil height ( mm) |
2870 |
4465 |
5770 |
6640 |
5860 |
|
G Min. turning radius (mm) |
3980 |
4485 |
5460 |
5740 |
6480 |
|
H Height of Min. turning radius (mm) |
9475 |
13580 |
16675 |
13940 |
20500 |
|
Weight (Kg) |
3600 |
4600 |
5600 |
8200 |
8600 |
|
Bucket Capacity (m3 ) |
0.3 |
0.6 |
1.2 |
1.5 |
2 |
LANDING DETECTION SYSTEM
Equipped with proximity sensors to inform the operator when the bucket hits the ground to ensure a safer and more efficient working operation
HIGH-STRENGTH BOOM HOUSING
Incorporating high-strength steel in the fabrication of the telescopic boom housing
TELESCOPIC WINCH
Improved telescopic winch design and system prolongs the life-span of wire rope by 18%
CLAMSHELL BUCKET
Specially designed hydraulic cylinder for grab work application is incorporated on the clamshell bucket. Wear resistant GETs are also used for a less frequent replacements
1.Standard wooden pallet, wooden case, steel pallet or as customer's request.
2.Fast delivery time: 5-7 days for small quantity, and 20-30 days for container quantity.
3.Shandong Mingde have a team specialized into packing and loading container, they have richexperience, to help customer save ocean freight.
